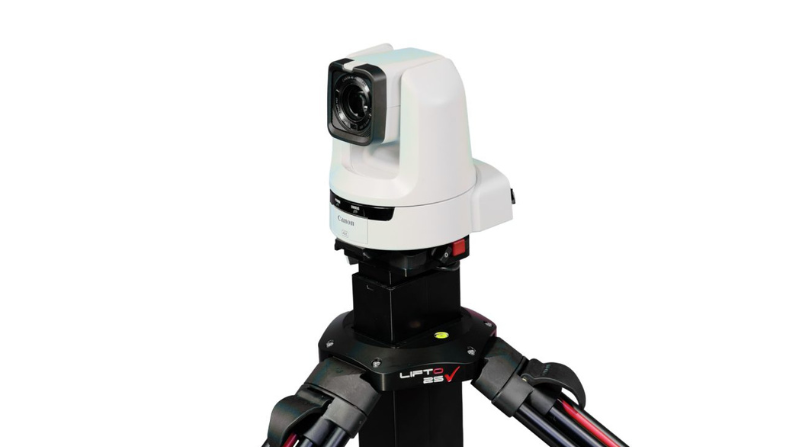

Looking at the remarkable Lifto 25 Motorized Elevation Column by Cartoni

Movie Makers News looks at the remarkable Lifto 25 Motorized Elevation Column by Cartoni. Designed to cater specifically to PTZ cameras, this innovative device introduces an unparalleled level of smoothness and creativity to enhance your productions. In addition to its outstanding Pan & Tilt and zoom control capabilities, it provides seamless vertical movement, elevating your content creation to new heights.

The Lifto 25 Motorized Elevation Column offers exceptional broadcast quality performance and an impressive height range, all at a competitive price point. With the growing demand for robotics in small studios, newsrooms, talk shows, educational institutions, and houses of worship, the Lifto 25 has become an indispensable tool for both studio and event settings.

The user-friendly control unit ensures reliable operation and can be connected via wire or optional Bluetooth. For swift routine repositioning, the manual control features three pre-settings, facilitating efficient workflow. With a height range spanning from 57 cm (22.5 inches) to 238 cm (93.7 inches) on stock rubber feet, the motorized column offers a two-stage, 66 cm (26 inches) stroke with a remarkable capacity of 25 kg (55 lbs).

Key Features:

  1. Motorized elevation column optimized for use with PTZ cameras
  2. Remarkably silent elevation motor
  3. Height range of 57 cm (22.5 inches) to 250 cm (98.4 inches) (measured on dolly, ordered separately)
  4. Maximum payload capacity of 25 kg (55 lbs)
  5. Smart deployment tripod for excellent torsional rigidity and rapid setup
  6. Bluetooth and wired remote control unit
  7. Three position pre-settings for fast routine repositioning
  8. Built-in spreader and rubber feet
  9. Quick-release camera attachment for PTZ cameras with camera safety ring

To ensure stability and torsional rigidity, the special Cartoni SDS tripod structure enables precise movements, including shots with wide-angle aperture. The motor actuator operates silently, devoid of any vibration, guaranteeing optimal performance.

This PTZ system comes complete with a built-in spreader and rubber feet, a quick-release camera attachment for PTZ cameras, and a safety ring to secure the camera. When mobility is a necessity, it can be conveniently mounted on the Cartoni lightweight dolly, allowing easy movement across the studio floor. If you require portability, the Lifto 25 unit can be packed into a compact, high-quality wheeled case, available as an optional accessory.

Recommended for use with the following cameras:

  1. ILME-FR7K – Sony FR7
  2. PT30X-SDI-GY-G2 – PTZOptics 30X-SDI Gen 2
  3. 6022C011 – Canon CR-N700 4K
  4. 5157C002 – Canon CR-N300 4K (white)
  5. 4839C001 – Canon CR-N500 Professional 4K
  6. BDP4KBUNDLE-WWW – BirdDog P4K 4K Full NDI (white)
  7. BDP4KBUNDLE-BBB – BirdDog P4K 4K Full NDI (black)
  8. AW-UE160WPJ – Panasonic AW-UE160 UHD 4K (white)
  9. AW-UE160KPJ – Panasonic AW-UE160 UHD 4K (black)

Technical Data:

  • Weight: 11.8 kg (26 lbs)
  • Capacity: 25 kg (55 lbs)
  • Minimum Height: 57 cm (22 inches)
  • Maximum Height (feet): 238 cm (94 inches)
  • Maximum Height (dolly): 250 cm (98 inches)
  • Material: Aluminum
  • Dimensions: φ 251 x 838 mm – φ 9.9 x 33 inches
  • Speed: 38 mm/s
  • Column interface fixing method: Quick-release camera plate
  • Stroke: 660 mm (26 inches)
  • Footprint diameter (minimum height): 1306 mm (51 inches)
  • Input voltage: 24 V
  • Dual voltage power supply: 100/240V 50/60Hz
  • Maximum current consumption: 9 A
  • Operational temperature: (data not provided)

If you are looking for a solution for your PTZ it is worth considering the Lifto 25 Motorized Elevation Column. With its exceptional features and reliable performance, it is the ideal solution to elevate your content creation and meet the demands of modern productions. Time to check out this incredible tool.
